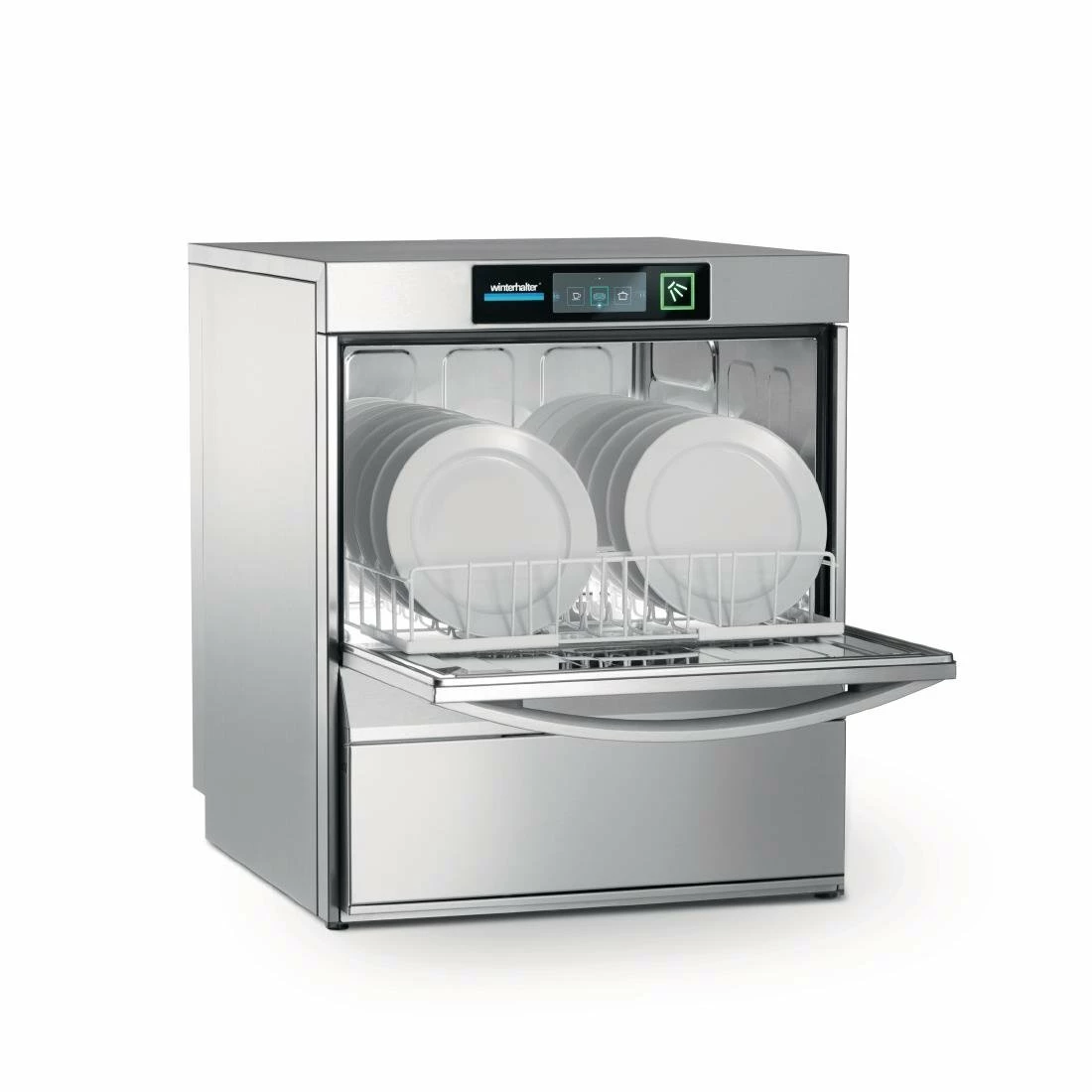

Winterhalter Undercounter Dishwasher UC-M-E

Compact. Effective. Reliable. The Winterhalter UC-M dishwasher has an unrivalled reputation for delivering exceptional quality washing results every time.

The UC-M is uniquely configurable – able to precisely adjust washing pressure and temperature, as well chemical dosing and contact time to get hygienic cleaning no matter what was on the plate. The Winterhalter optimises every part of the washing process to reduce energy use, noise and running costs. Whether it’s being used in a restaurant, hotel or gastro pub, the Winterhalter gives you the cleaning performance you need.

This dishwasher delivers a rinse temperature of 82°C for 12 seconds, a temperature that won’t be reached when handwashing. As such, cleaning your equipment with this commercial dishwasher is the only way to guarantee effective sanitation when washing – ensuring staff and customers are protected against transferrable viruses. Once cleaned, we recommend storing your equipment in the wash basket to reduce contact and handling.

This model is fitted with an internal water softener, allowing use in medium to hard water areas.

What is an air gap?

An air gap is a unobstructed physical air break which prevents contaminated water flowing back into the machine. This ensures that only clean water is used to wash the contents.

What does a drain pump do?

Not all dishwashers need a drain pump. This is a handy internal or external pump which removes waste water from the dishwasher. In some circumstances, water can simply drain away using gravity. If the drain outlet is higher than the dishwasher though, you’ll need a drain pump.

Product features

• Capacity 32 glass racks/ 28 dish racks/hr
• Dimensions 760(H) x 600(W) x 603(D)mm
• Material Stainless Steel
• Output 800 glasses/hr or 504 plates/hr
• Power Type 20A single phase as standard. Please inform us when ordering if you require 3 phase
• Supplier Model Number UC-M-E
• Temperature Range Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
• Voltage Variable
• Warranty 3 Years On-Site Parts & Labour
• Weight 64kg
• Colour Silver
• Useable wash chamber height: 309mm
• Up to three programmable wash cycles
• Self-cleaning programme ensures maximum hygiene
• Advanced design helps to reduce water and energy use
• Precise detergent & rinse aid dosing optimises washes
• VarioPower technology adjusts rinse pressure to maximise performance
• Minimum requirement of 1.5 bar incoming water pressure
• Made in Germany
• Quiet mode reduces operating noise
• Intuitive Smart Touch digital control panel and display
• WRAS compliant air gap
