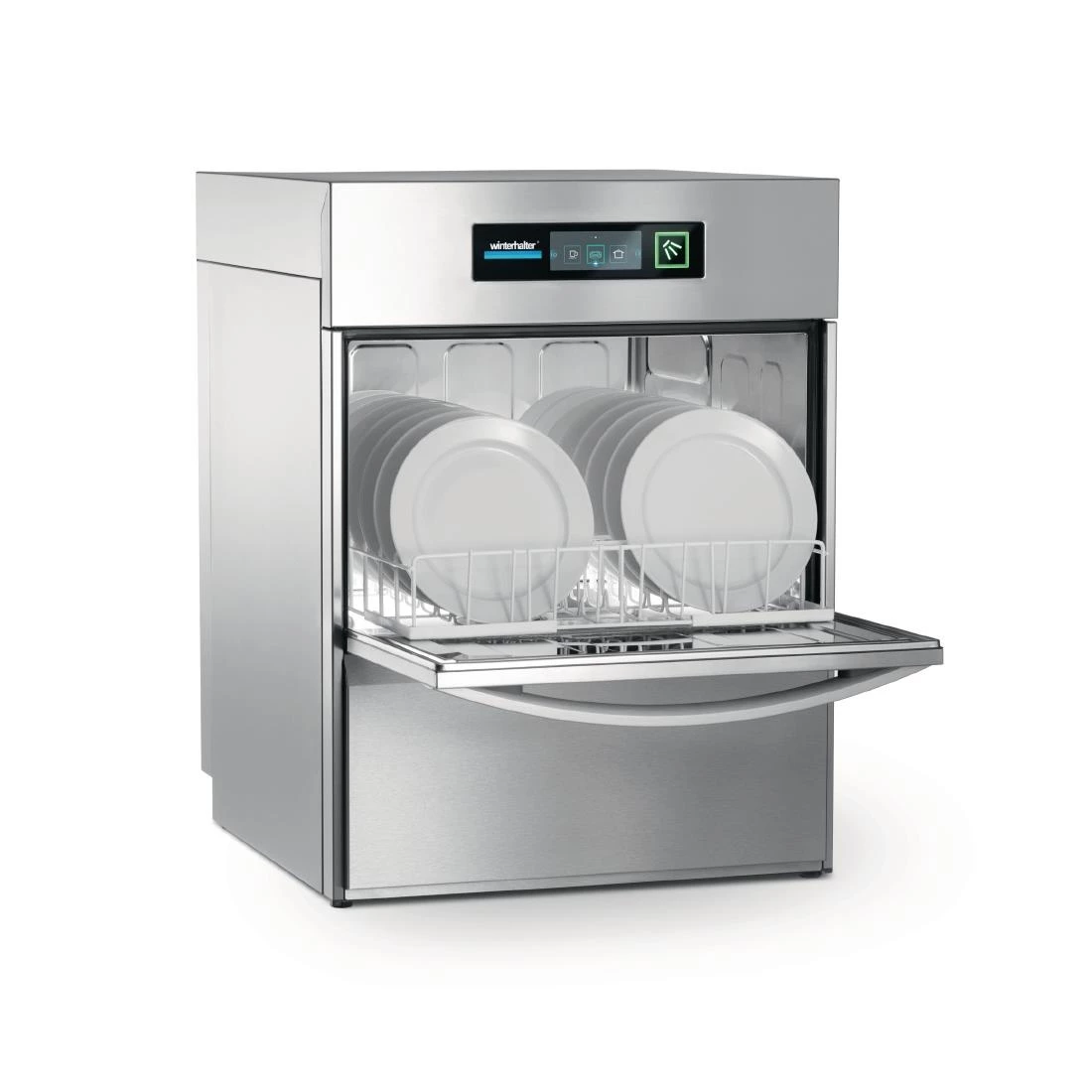

Winterhalter Undercounter Dishwasher UC-M-E Energy

Compact. Effective. Reliable. The Winterhalter UC-M-E Energy dishwasher has an unrivalled reputation for delivering exceptional quality washing results without costing the Earth.

The UC-M is uniquely configurable – able to precisely adjust washing pressure and temperature, as well chemical dosing and contact time to get hygienic cleaning no matter what was on the plate. The Winterhalter optimises every part of the washing process to significantly reduce energy use, noise and running costs.

This dishwasher delivers a rinse temperature of 82°C for 12 seconds, a temperature that won’t be reached when handwashing. As such, cleaning your equipment with this commercial dishwasher is the only way to guarantee effective sanitation when washing – ensuring staff and customers are protected against transferrable viruses. Once cleaned, we recommend storing your equipment in the wash basket to reduce contact and handling.

This model features an advanced heat and steam capture function which dramatically reduces energy use and running costs. This also removes the need for an overhead condenser hood.

Fitted with an internal water softener which allows use in medium to hard water areas.

What is an air gap?

An air gap is a unobstructed physical air break which prevents contaminated water flowing back into the machine. This ensures that only clean water is used to wash the contents.

What does a drain pump do?

Not all dishwashers need a drain pump. This is a handy internal or external pump which removes waste water from the dishwasher. In some circumstances, water can simply drain away using gravity. If the drain outlet is higher than the dishwasher though, you’ll need a drain pump.

Product features

• Capacity 32 glass racks/ 28 dish racks/hr
• Dimensions 820(H) x 600(W) x 603(D)mm
• Material Stainless Steel
• Output 800 glasses/hr or 504 plates/hr
• Power Type 20A single phase as standard. Please inform us when ordering if you require 3 phase
• Supplier Model Number UC-M-E-ENERGY
• Temperature Range Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
• Voltage Variable
• Warranty 3 Years On-Site Parts & Labour
• Weight 70kg
• Colour Silver
• Useable wash chamber height: 309mm
• Up to three programmable wash cycles
• Self-cleaning programme ensures maximum hygiene
• Highly efficient and designed to significantly reduce water and energy use. Innovative heat exchange saves around 100W per cycle
• Precise detergent & rinse aid dosing optimises washes
• VarioPower technology adjusts rinse pressure to maximise performance
• Minimum requirement of 1.5 bar incoming water pressure
• Made in Germany
• Quiet mode reduces operating noise
• Intuitive Smart Touch digital control panel and display
• WRAS compliant air gap
